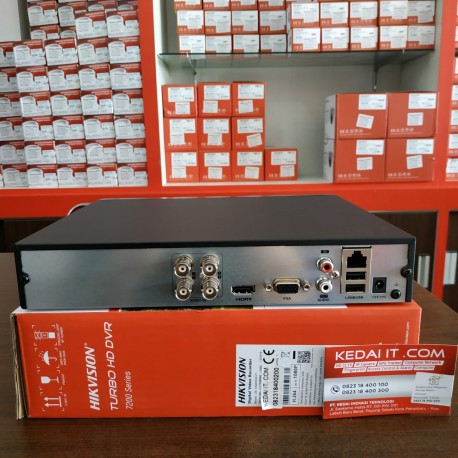

HIKVISION TURBO HD 1MP DVR DS-7204HGHI-F1 View larger

HIKVISION TURBO HD 1MP DVR DS-7204HGHI-F1

New product

Turbo HD DVR

• H.264 & Dual-stream video compression
• Support both HD-TVI/analog and AHD cameras with
adaptive access
• Full channel@ 720P resolution non real-time recording
• HDMI and VGA output at up to 1920×1080P
resolution
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback



More details

More info

Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF
Frame Rate: 1/16 fps ~ Real time frame rate
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback: 16-ch
Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12V DC
Consumption: ≤ 20W(without hard disks)
Working Temperature: -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: 10% ~ 90%
Chassis: 1U chassis
Dimensions: 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
Weight: ≤ 1.2 Kg (2.6 lb) (without hard disks)
Video/Audio Input
Audio Input: 1-ch
Video Compression: H.264
Analog and HD-TVI video input: 16-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:
Support HDTVI input: 720P/25, 720P/30
Support AHD input: 720P/25, 720P/30, CVBS
IP Video Input: 2-ch (up to 18-ch) Up to 2MP resolution
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
