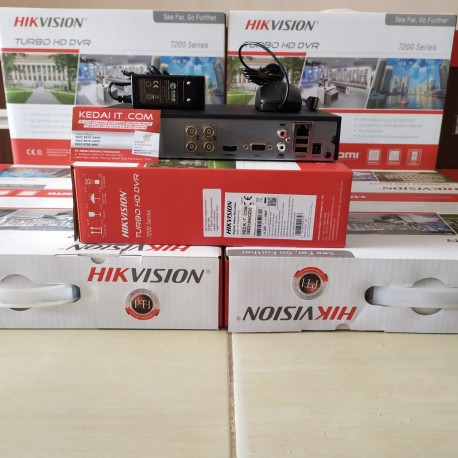

HIKVISION TURBO HD DVR DS-7204HQHI-K1/ECO

Condition: New product

4 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input
4-ch HDTVI coaxial video&audio input
1-ch RCA audio input
2-ch IP video input(up to 6-ch IP)
H.265/H.265+ compression
1 SATA interface
CH01: 3MP @ 15fps
CH01-04:1920×1080P @15 fps, 4MP Lite@15fps/ch
260 1U case

More details

More info

- Recording
- Encoding Resolution
  When 1080p lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Video Bit Rate32 Kbps to 6 Mbps
- Frame Rate
  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback4-ch
- IP Video Input
  1-ch (up to 5-ch)

  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS OutputN/A
- HDMI/VGA Output
  HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output

  VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Network
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections32
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceN/A
- USB Interface2 × USB 2.0
- Alarm In/OutN/A
- SATA1 SATA interface
- General
- Consumption(Without HDD)≤ 5 W
- Working Humidity10% to 90%
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
- Weights (Without HDD)≤ 1.6 kg (3.5 lb)
