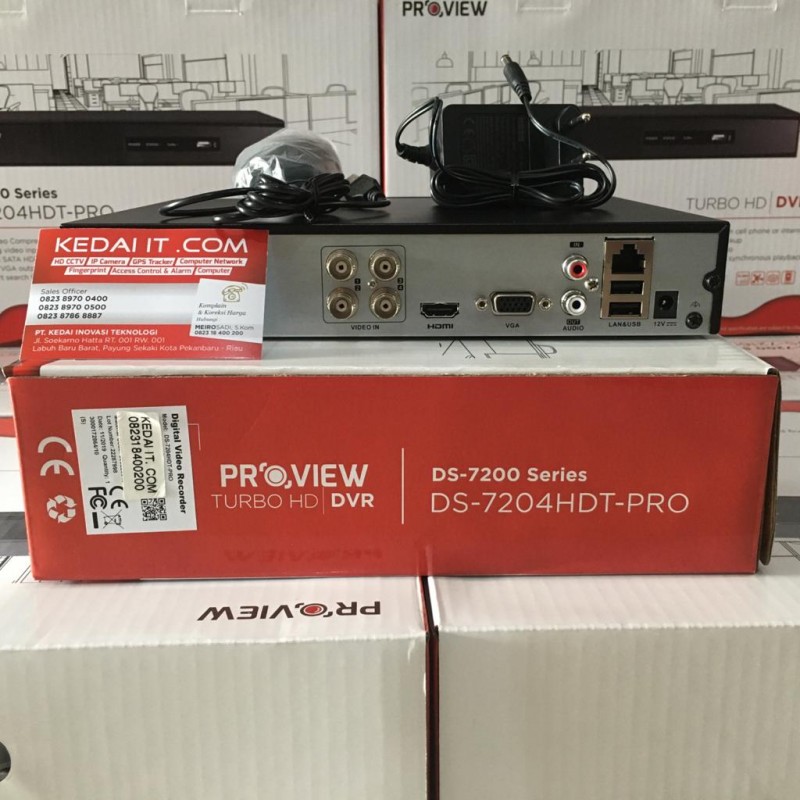

PROVIEW TURBO HD DVR DS-7204HDT-PRO

Recording

• Video compression ;H.264+/H.264

• Encoding resolution ;When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF ;When 1080p Lite mode enabled:1080p lite/720p/WD1/4CIF/VGA/CIF

• Frame rate ;Main stream: When 1080p Lite mode not enabled:For 720p stream access:720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)When 1080p Lite mode enabled:1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)

• Sub-stream : 2CIF@6fps;CIF/QVGA/QCIF@ 25fps(P)/30fps(N)

• Video bit rate32 Kbps to 4 Mbps

• Dualstream Support

• Stream typeVideo, Video& Audio

• Audio compressionG.711u

• Audio bit rate64 Kbps

Video and Audio

• IP video input1-ch(up to 5-ch)

• Up to 1080p resolution

• SupportH.264+/H.264 IP cameras

• Analog video input4-ch

• BNC interface (1.0Vp-p, 75 Ω), supporting coaxitronconnection

• Turbo Hdinput ;1080p25, 1080p30, 720p25, 720p30

• AHDinput1080p25, 1080p30, 720p25, 720p30

• HDCVI input1080p25, 1080p30, 720p25, 720p30

• CVBS inputSuppor

• tHDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz

• Audio input1-ch,RCA (2.0 Vp-p, 1 KΩ)

• Audio output1-ch, RCA (Linear, 1 KΩ)

• Two-way audioReuse the first audio input

• Synchronous playback4-c

Network

• Remote connections32

• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Network interface1,RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary interface

• SATA1 SATA interface

• CapacityUp to 6 TB capacity for each disk

• Alarm in/outN/A

• USB interfaceRear panel: 2 × USB 2.0

General

• Power supply12 VDC

• Consumption(without HDD)≤ 8W

• Working temperature-10 °C to 55 °C(14 °F to131 °F)

• Working humidity10% to90%

• Dimensions(W × D × H)260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)

• Weight(without HDD)≤ 1 kg (2.2lb)
