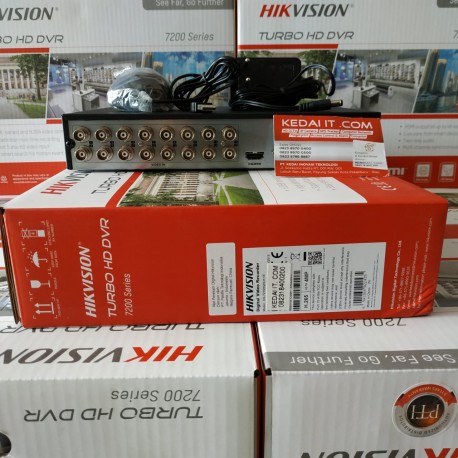

HIKVISION TURBO HD DVR DS-7216HQHI-K1/E

Audio Input
1-ch

Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input
16-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported Camera Types

- Support HDTVI input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- Support AHD input
4 MP, 1080p25, 1080p30, 720p25, 720p30
- Support CVI input
1080p25, 1080p30, 720p25, 720p30
- Support CVBS input

Video/Audio Input Interface
BNC (1.0 Vp-p, 75Ω); RCA (2.0 Vp-p, 1 kΩ)

Audio Compression
G.711u

Two-way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Bit Rate
32 Kbps-6 Mbps; 64kbps

Synchronous Playback
16-ch

Interface Type
1 SATA Interface

Capacity
Up to 10 TB capacity for each disk

External Interface

- Network Interface
1; 10M / 100M / 1000M self-adaptive Ethernet interface
- USB Interface
1 USB 2.0 Interface & 1 USB 3.0 Interface
- Serial Interface
1; standard RS-485 serial interface, half-duplex

Power Supply
12 VDC

Dimensions
315 × 242 × 45 mm
