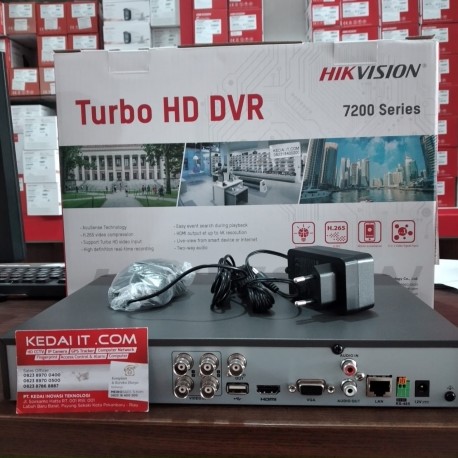

HIKVISION TURBO HD DVR IDS-7204HQHI-M1/S

Analog video input

4-ch

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for

channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S

AHD input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz, HDMI/VGA simultaneous output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

4-ch

8-ch

16-ch

Network

Remote connection

32

64

128

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface, up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

N/A

General

Power supply

12 VDC

Consumption (without HDD)

≤ 18 W

≤ 24 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Analog video input

4-ch

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for

channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S

AHD input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz, HDMI/VGA simultaneous output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

4-ch

8-ch

16-ch

Network

Remote connection

32

64

128

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface, up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

N/A

General

Power supply

12 VDC

Consumption (without HDD)

≤ 18 W

≤ 24 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
