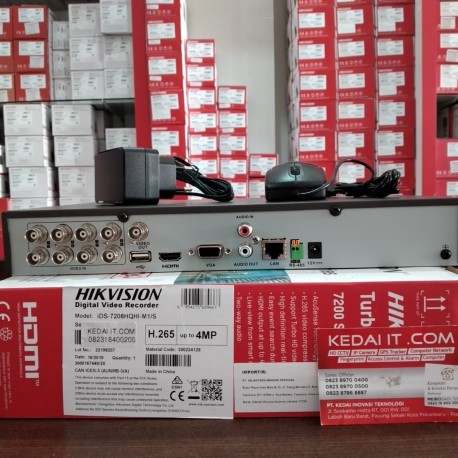

> >>HIKVISION TURBO HD DVR IDS-7208HQHI-M1/S
HIKVISION TURBO HD DVR IDS-7208HQHI-M1/S View larger

HIKVISION TURBO HD DVR IDS-7208HQHI-M1/S

New product

  • 8 channels and 1 HDD 1U AcuSense DVR
  • Provides detailed information with face detection
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 network cameras can be connected.

More details

More info

Recording

  • Encoding resolutionMain stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

  • Video bit rate ;32 Kbps to 6 Mbps

  • Video compression ;H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

  • Dual stream ;Support

  • Stream type ;Video, Video & Audio

  • Audio compression ;G.711u

Video and Audio

  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)

  • Audio output1-ch, RCA (Linear, 1 KΩ)

  • Synchronous playback8-ch

  • IP video input4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

  • HDTVI input3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

  • HDCVI input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

  • CVBS inputPAL/NTSC

  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

  • Analog video input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • AHD input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Network

  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

  • Remote connections64

  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary interface

  • CapacityUp to 10 TB capacity for each disk

  • Serial interfaceRS-485 (half-duplex)

  • USB interface2 × USB 2.0

  • Alarm in/outN/A

  • SATA1 SATA interface

General

  • Consumption(without HDD)≤ 18 W

  • Working humidity10% to 90%

  • Power supply12 VDC

  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)

  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

  • Weights (without HDD)≤ 1.78 kg (3.9 lb)
