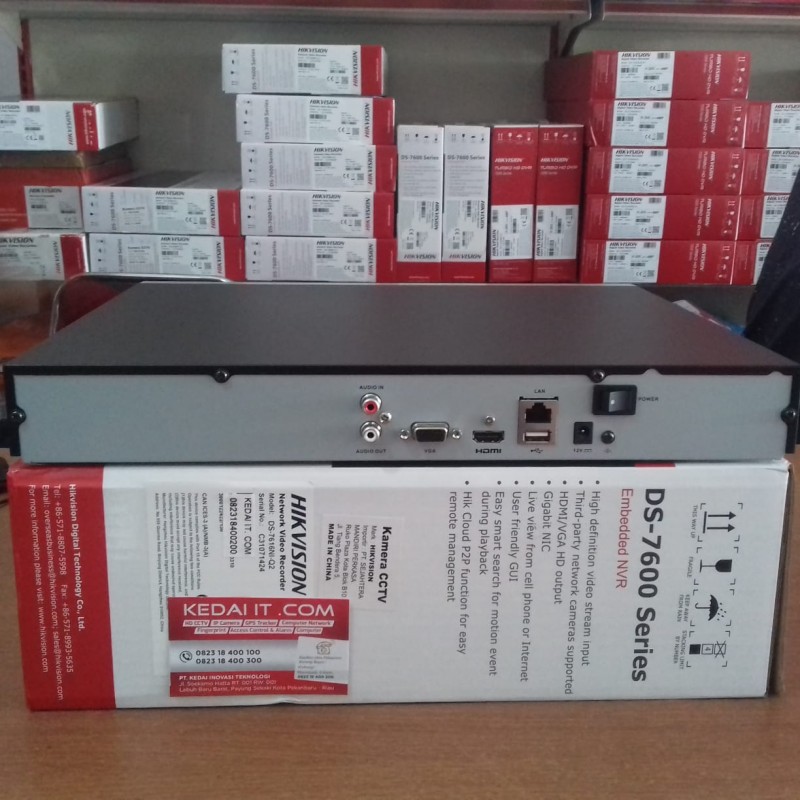

HIKVISION NVR DS-7616NI-Q2
New product
- H.265+/ H.265/ H.264/ H.264+ video formats
- Connectable to the third-party network cameras
- Up to 16 IP cameras can be connected
- Recording at up to 8 MP resolutio
- HDMI Video output at up to 4K (3840 × 2160) resolution
- 2 SATA interfaces connectable for recording and backup
- 16 independent PoE network interfaces are provided
More info
| Video/Audio Input | IP video input: 16-ch Up to 8 MP resolution; Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Video/Audio Output | Recording Resolution: 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA / 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF; HDMI Output: 1-ch, 4K (3840 × 2160)/ 30Hz, 1920 × 1080p/ 60Hz, 1600 × 1200/ 60Hz, 1280 × 1024/ 60Hz, 1280 × 720/ 60Hz, 1024 × 768/ 60Hz; VGA output resolution: 1-ch, 1920 × 1080p/ 60Hz, 1280 × 1024/ 60Hz, 1280 × 720/ 60Hz, 1024 × 768/ 60Hz; Audio Output: 1-ch, RCA (Linear, 1kΩ) |
| Network Management | Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Decoding | Decoding format: H.265/ H.265+/ H.264/ H.264+/ MPEG4; Live view / Playback resolution: 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA / 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF; Synchronous playback: 16-ch; Capability: 1-ch @ 8 MP / 4-ch @ 1080p |
| Network | Incoming bandwidth: 160Mbps; Outgoing bandwidth: 80Mb |
| External Interface | Network Interface: 1, RJ-45 10/ 100/ 1000 Mbps self-adaptive Ethernet interface; USB Interface: 2 × USB 2.0 |
| Hard Disk | SATA: 2 SATA interfaces; Capacity: Up to 6TB capacity for each disk |
| POE | Interface: 16, RJ-45 10/ 100 Mbps self-adaptive Ethernet interface; Power: ≤ 150W; Standard: IEEE 802.3 af/at |
| General | Power Supply: 100~240VAC; Power: ≤ 280W; Consumption (without hard disk): ≤ 15W; Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF); Working Humidity: 10 % ~ 90 %; Chassis: 380 1U case; Dimensions: 385 × 315 × 52 mm (15.2"× 12.4" × 2.0"); Weight(without HDD): ≤ 3 kg (6.6 lb) |
