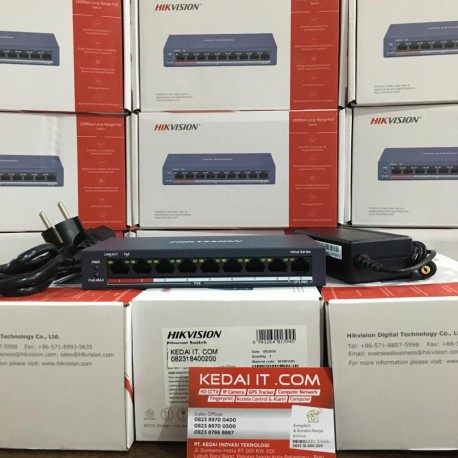

HIKVISION ETHERNET SWITCH DS-3E0109P-E/M (B)
New product
8 x 100M PoE ports and 1 x 100M Ethernet port.
Supports IEEE802.3at/af.
Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
Supports high priority ports.
Supports 8-core power supply.
Up to 250 m transmission distance.
PoE port with 6 KV surge protection.
Supports PoE output power management.
100M network access.
Wire-speed forwarding and non-blocking design.
More info
| General | ||
|---|---|---|
| Power Supply: | 51 V DC，1.25 A | |
| Power Consumption: | ≤63w | |
| Working Temperature: | Operating Temperature: 0 °C ~ 40 °C | |
| Working Humidity: | Operating Humidity: 10% - 90% RH non-condensing | |
| Storage Temperature: | Storage Temperature: -40 °C ~ 70 °C | |
| Storage Humidity: | Storage Humidity: 5% - 90% RH non-condensing | |
| Ports | ||
|---|---|---|
| 10/100M RJ45: | 9 | |
| Port of high priority: | Port 1 - 2 | |
| Performance | ||
|---|---|---|
| Switching Capacity: | 1.8 Gbps | |
| Store-and-forward: | Supported | |
| MAC address table: | 4 k | |
| MAC address learning: | Auto-learning/ Auto-aging | |
| Power Over Ethernet | ||
|---|---|---|
| PoE Standard: | IEEE 802.3af, IEEE802.3at | |
| Working Mode: | EXTEND OFF, EXTEND ON | |
| PoE cable core: | Supports 8-pin power supply | |
| PoE port: | 1 - 8 | |
| Port max. power: | 30 W | |
| Switch max. power: | 58 W | |
