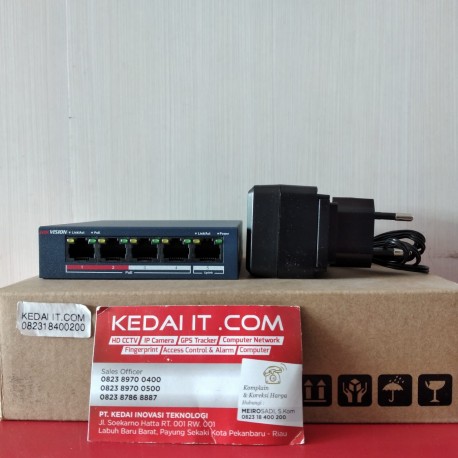

HIKVISION ETHERNET SWITCH DS-3E0105P-E/M

New product

Feature and Function

  • 4 x 100M PoE ports and 1 x 100M Ethernet port.
  • Supports IEEE802.3at/af.
  • Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
  • Supports high priority ports.
  • Supports 8-core power supply.
  • Up to 250 m transmission distance.
  • PoE port with 6 KV surge protection.
  • Supports PoE output power management.
  • 100M network access.

Wire-speed forwarding and non-blocking design.

More details

More info

Model DS-3E0105P-E/M(B)

    1. Network Parameters

  • Port number : 4 x 100M PoE ports, 1 x 100M Ethernet port.
  • Port type : RJ45 port, Full duplex, MDI/MDI-X adaptive
  • Standard : IEEE802.3, IEEE802.3u, IEEE802.3x
  • Processing type : Store-and-forward switching
  • Ports with high priority : 1 to 2 ports
  • Ports for longdistance transmission : 1 to 4 ports
  • MAC address table : 1 K
  • Exchange capacity : 1 Gbps
  • Packet forwarding rate : 0.744 Mpps
  • Internal cache : 448 Kbits

   2.  PoE power supply

  • Power supply standard : IEEE 802.3af, IEEE 802.3at
  • Power supply cable core : Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
  • PoE port : 1 to 4
  • Max. port power : 30 W
  • Max. machine power : 35 W

   3.  Mechanical structure

  • Shell : Metal material, fan-free design
  • weight : 0.2 kg (0.4 lb)
  • Dimensions (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)

   4.  Environment

  • Operating temperature : 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
  • Storage temperature : –40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
  • Relative humidity : 5% to 95% (no condensation)

   5.  Power supply

  • Power supply specification : 48 VDC, 0.8 A
