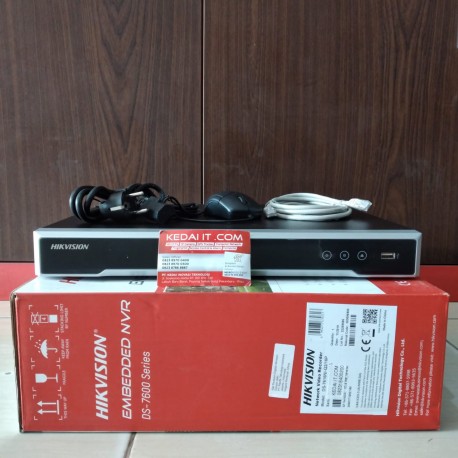

HIKVISION NVR DS-7616NI-Q2-16P
New product
16-ch 1U 16 PoE 4K NVR
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
More info
Video and Audio
- IP video input16-ch,Up to 8 MP resolution
- Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
- Video resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback16-ch
- Capability1-ch @ 8 MP / 4-ch @ 1080p
- Incoming/outgoing bandwidth80 Mbps,160 Mbps
- SATA2 SATA interfaces
- CapacityUp to 6TB capacity for each disk
- Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB interface2 × USB 2.0
- Power supply100 to 240 VAC,≤ 280W
- Consumption (without HDD)≤ 15W
- Working temperature-10 to +55º C (+14 to +131º F)
- Working humidity10 to 90 %
- Dimensions (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- Weight (without hard disk)≤ 2.6 kg (5.7 lb)
- Chassis1U chassis
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 150W
- Supported standardIEEE 802.3 af/at
- VGA output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Audio output1-ch, RCA (Linear, 1 KΩ)
- Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
