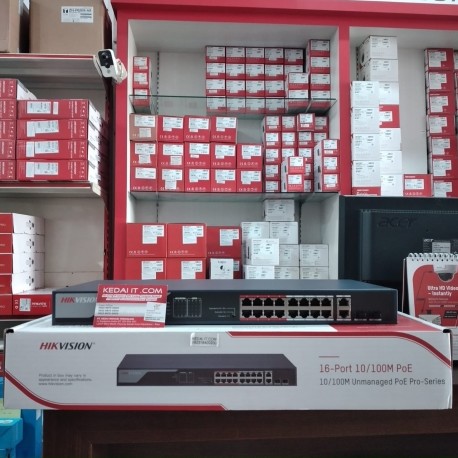

New  HIKVISION ETHERNET SWITCH DS-3E0318P-E/M(B) View larger

HIKVISION ETHERNET SWITCH DS-3E0318P-E/M(B)

New product

HikVision DS-3E0318P-E(B) Black 16-Port 100 Mbps Long-Range Unmanaged PoE Switch DS-3E0318P-E(B) is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 300 m.

More details

More info

Features

#Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

# Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

# 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.

# 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

# Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs

Specifications

# 16 × 100 Mbps PoE ports, 2 × 1000 Mbps combos

# Supports IEEE802.3at/af

# Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.

# Supports high priority ports : Ports 1 to 8.

# Ports for long-distance transmission : Ports 9 to 16

# Supports 8-core power supply # Up to 300 m transmission distance.

# PoE port with 6 KV surge protection.

# Store-and-forward switching.

# Solid high-strength metal shell.

# Fan-free design with high reliability.

# Dimensions (L × H × D) : 440 mm × 44 mm × 220.8 mm

# Power supply specification : 100 to 240 VAC, 50/60 Hz, Max. 4 A
