> >>HIKVISION DVR 4MP DS-7224HQHI-K2

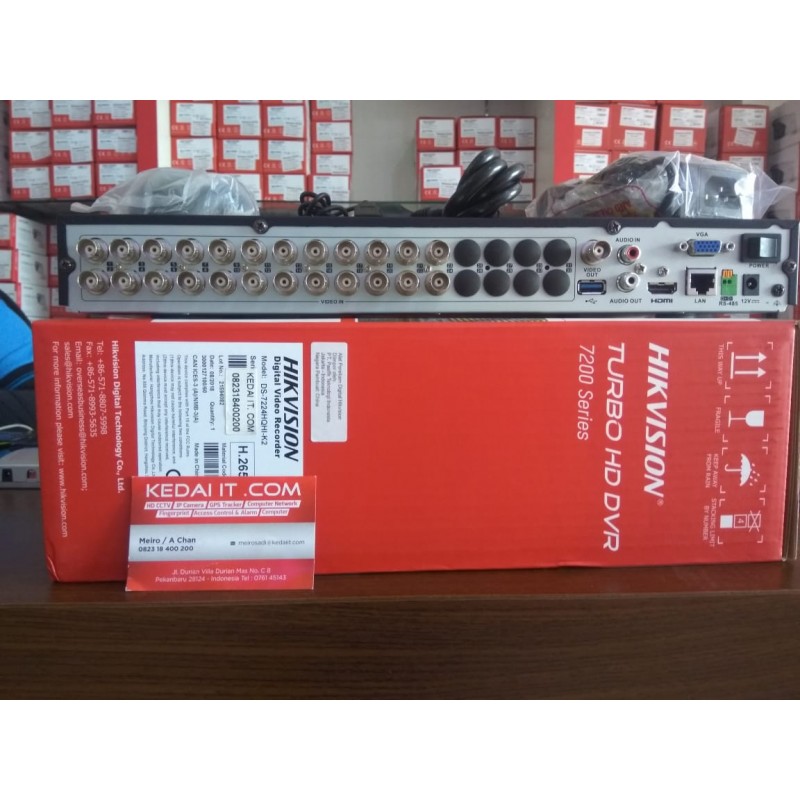

HIKVISION DVR 4MP DS-7224HQHI-K2 View larger

HIKVISION DVR 4MP DS-7224HQHI-K2

New product

  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Self-adaptive HDTVI/ HDCVI/ AHD/ CVBS signal input
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • Full channel recording at up to 4 MP lite resolution
  • HDMI output at up to 4K (3840 × 2160) resolutioN

More details

More info

Audio Input: 1-ch;
Analog and HD-TVI video input: 24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection;
Supported camera types: Support HDTIV input:4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4.;
Support AHD input:4 MP, 1080p25, 1080p30, 720p25, 720p30;
Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30;
Support CVBS input: PAL/NTSC;
Video Input Interface: BNC (1.0 Vp-p, 75Ω);
Audio Compression: G.711u;
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ);
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)
Video/Audio Output CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480;
HDMI/VGA Output: 1-ch,4K (3840 × 2160)/ 30Hz, 2K (2560 ×1440)/ 60Hz, 1920 ×1080/ 60Hz, 1280 × 1024/ 60 Hz, 1280 × 720/ 60Hz, 1024 × 768/ 60 Hz;
Frame Rate:
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps (P)/ 30fps (N);
For 3 MP stream access: 3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF@15fps;
For 1080p stream access: 1080p/ 720p@15fps; VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N);
For 720p stream access: 720p/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N);
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N);
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/ 30fps (N);
Video Bit Rate: 32 Kbps-6 Mbps;
Stream Type: Video/ Video & Audio;
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input);
Audio Output: 1-ch RCA(Linear, 1kΩ);
Audio Bit Rate: 64kbps;
Dual Stream: Support;
Synchronous Playback: 16-ch
Network Management Remote connections: 128;
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver Interface Type: 2 SATA Interfaces
External Interface Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface;
USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface;
Serial Interface: 1; standard RS-485 serial interface, half-duplex
General Power Supply: 12 VDC;
Consumption: ≤ 55 W;
Working Temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF);
Working Humidity: 10% to 90%;
Dimensions: 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch);
Weight: ≤ 2 kg (4.4 lb
