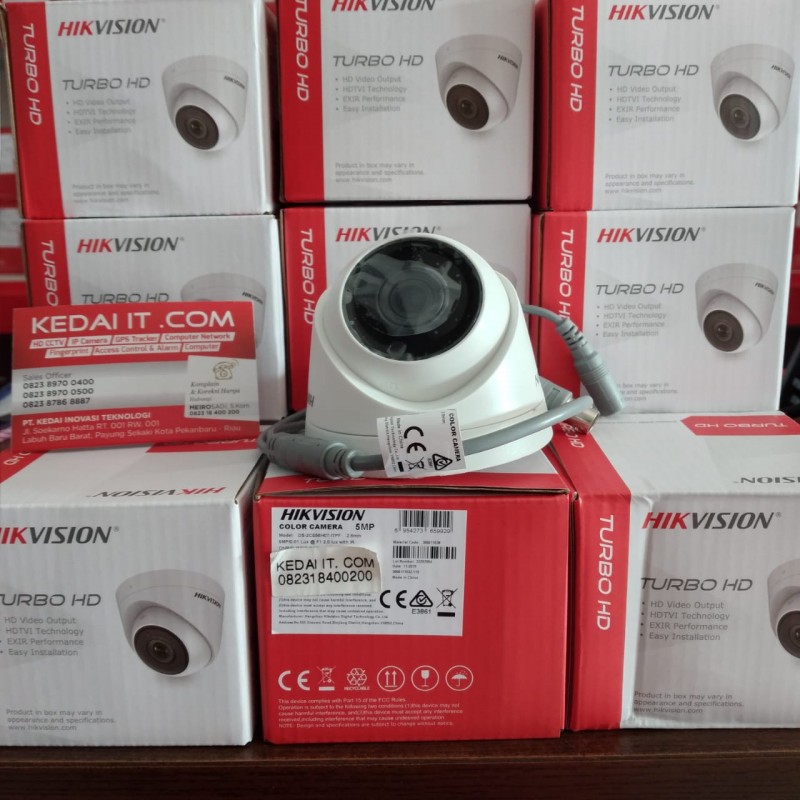

HIKVISION CAMERA TURBO HD 5MP DS-2CE56H0T-ITPF
New product
5 MP Turret Camera
• 5 Megapixel high-performance CMOS
• Analog HD output, up to 5MP resolution
• True Day/Night
• OSD menu, 2D DNR, DWDR
• EXIR technology, up to 20m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Up the Coax(HIKVISION-C)
More info
| Camera | ||
|---|---|---|
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal/Power synchronization | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Ø 85.4 mm × 76.12 mm (Ø 3.38" × 2.67") | |
| Weight: | Approx.: 130 g (0.42 lb.) | |
