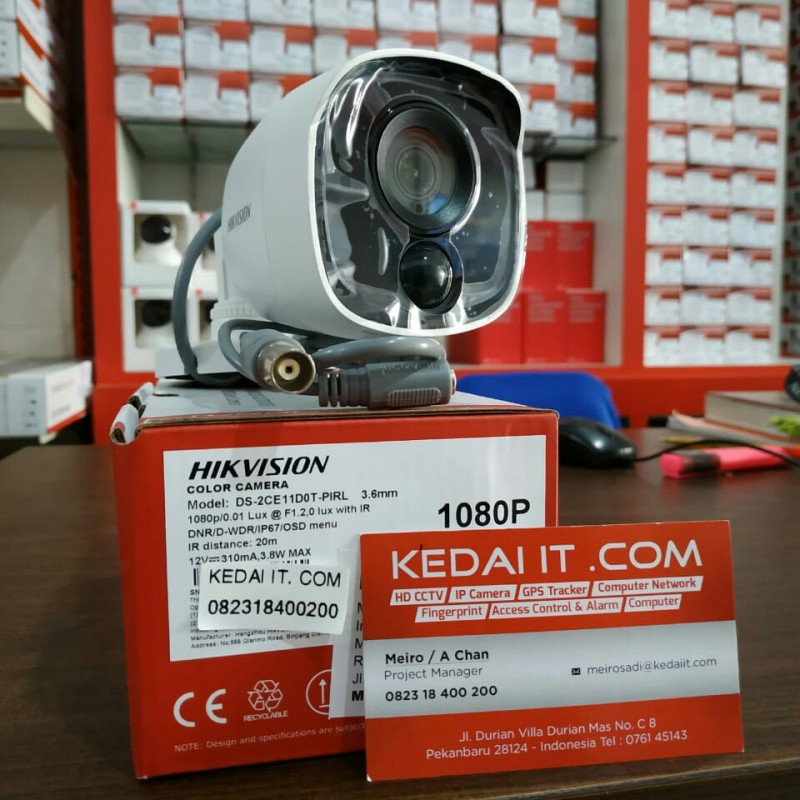

HIKVISION COLOR CAMERA DS-2CE11D0T-PIRL 2MP

Camera:
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) × 1080 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)
Lens Mount M12
Visual Alarm Yes
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
Menu:
White Light Alarm/Off
AGC Low/middle/high
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
Backlight Compensation Yes
Language English, Chinese
Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
Interface:
Video Output 1 HD analog output
General:
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4 W
Ingress Protection IP67
Material Metal:
IR Range Up to 20 m
PIR Range Angle: 110°, Range:11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 68 mm × 70 mm × 179.8 mm ( 2.68" × 2.76" × 7.08" )
Weight Approx. 345 g (0.76 lb.)
