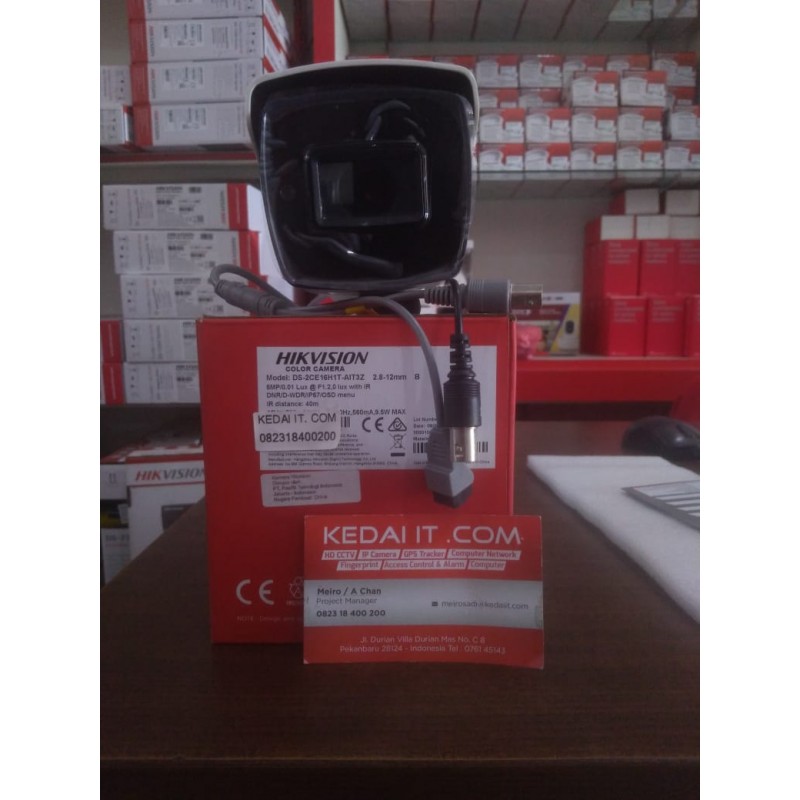

HIKVISION TURBO HD 5MP DS-2CE16H1T-AIT3Z
New product
- Color: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
- 1/3" (5 MP) High-Performance Progressive Scan CMOS
- 2592 × 1944 @ 20 fps
- Motorized VF lens; 2.8 to 12 mm
- Up to 120 ft (40 m)
- Maximum 5 W, -A: Maximum 9 W
More info
| Menu | ||
|---|---|---|
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| Language: | English/Chinese | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% -A: 12 VDC±25%, 24 VDC±25% |
|
| Weather Proof: | IP67 | |
| IR Range: | Up to 40m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 92 mm × 84.8 mm × 269.6 mm (3.62" × 3.34" × 3.34") | |
| Weight: | Approx. 900 g (1.98 lb.) | |
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1440 (V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization |
