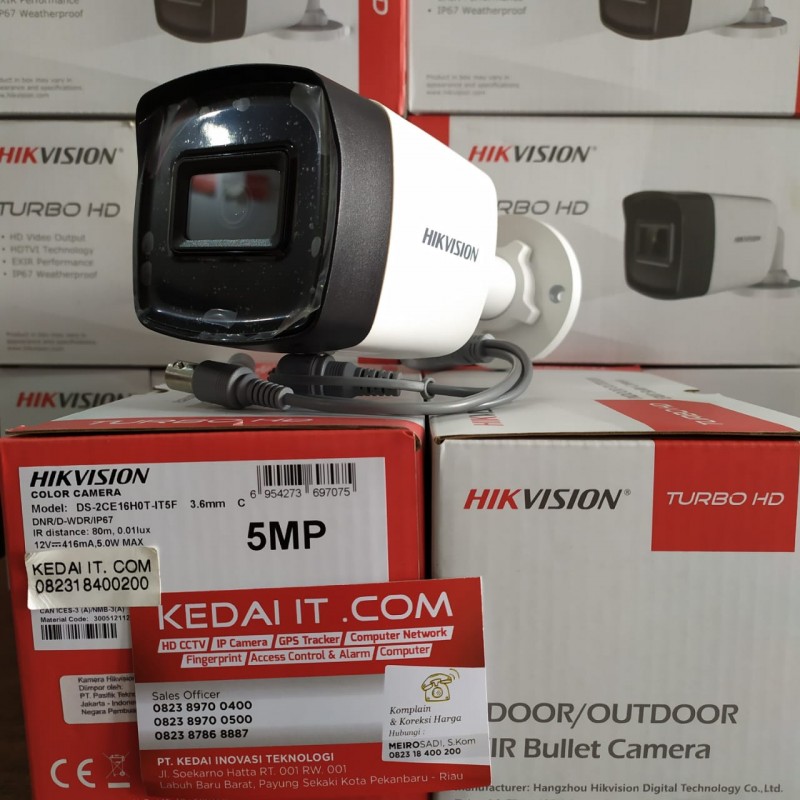

HIKVISION TURBO HD CAMERA COLOR DS-2CE16H0T-IT5F (C)
New product
- 5 MP bullet camera
- EXIR 2.0: advanced infrared technology with 80 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
More info
Camera
Lens3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Horizontal Field of View80.1° (3.6 mm), 57.1° (6 mm), 41° (8 mm), 25.7° (12 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Effective Pixels2560 (H) × 1944 (V)
Image Sensor5 MP CMOS image sensor
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Min. illuminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Menu
AGCSupport
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceATW/MWB
Backlight CompensationSupport
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS
General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply12 V DC ±25%
Power ConsumptionMax. 5.2 W
Protection LevelIP67
MaterialFront cover: Metal Main body: Plastic
IR RangeUp to 80 m
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
Dimensions86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.67")
WeightApprox. 680 g (1.5 lb.)
