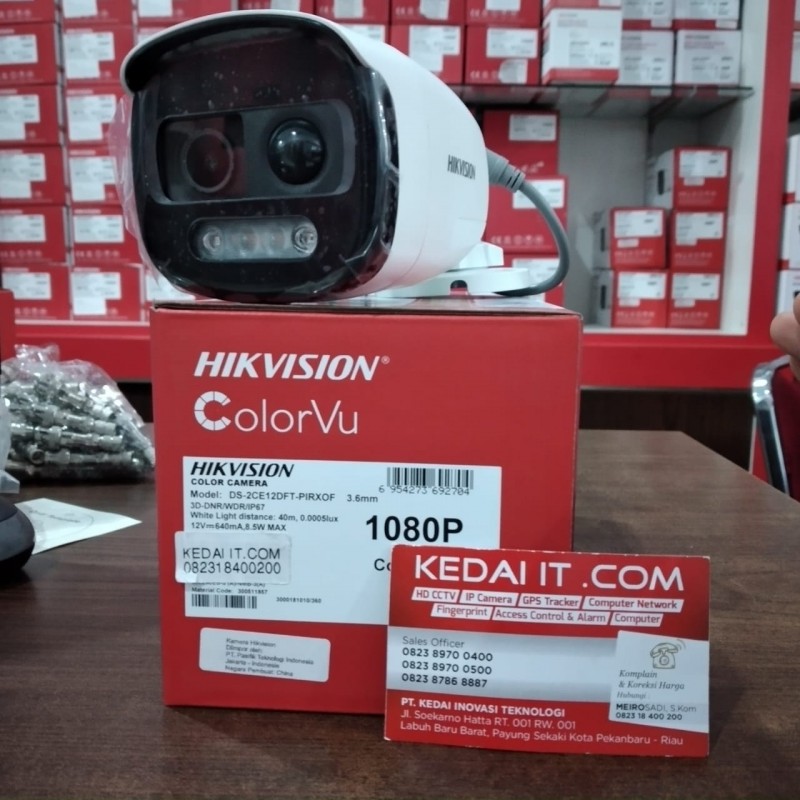

HIKVISION COLOR CAMERA DS-2CE12DFT-PIRXOF
New product
Spesifikasi :
- 2 MP, 1920 × 1080 resolution
- 24-hour color image
- 130 dB true WDR, 3D DNR
- 3.6 mm, 6 mm fixed focal lens
- Smart Light, up to 40 m white light distance
- PIR detection, strobe light alarm, alarm out/audible alarm
- Built-in siren
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
More info
Spesifikasi Unit :
Camera
|
Image Sensor |
2 MP CMOS |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@30fps 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC |
|
Resolution |
1920 (H) × 1080 (V) |
|
Min. illumination |
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
Lens |
3.6 mm, 6 mm fixed lens |
|
Horizontal Field of View |
3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7° |
|
Lens Mount |
M16 |
|
Day & Night |
Color |
|
WDR (Wide Dynamic Range) |
≥130 dB |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
Menu
|
White Light |
AUTO/OFF |
|
Image Mode |
STD/HIGH-SAT |
|
AGC |
Support |
|
White Balance |
ATW/MANUAL |
|
HLC |
Yes |
|
BLC (Backlight Compensation) |
Yes |
|
Language |
English |
|
Functions |
Brightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction |
Interface
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
General
|
Operating Condition |
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
|
Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
|
Power Consumption |
Max. 8.5 W |
|
Protection Level |
IP67 |
|
Material |
Front Cover: Metal Main Body: Plastic |
|
Communication |
HIKVISION-C |
|
Dimensions |
77.1 mm × 82.6 mm × 208.9 mm (3.04" × 3.25" × 8.22") |
|
Weight |
Approx. 441 g ( 0.97 lb.) |
|
White Light Distance |
Up to 40 m |
