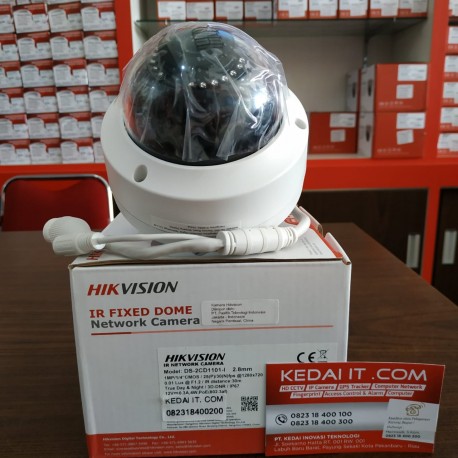

HIKVISION IP CAMERA DS-2CD1101-I

Camera

• Image Sensor 1/4" progressive scan CMOS
• Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
• Shutter Speed 1/3 s to 1/100, 000 s, support slow
• shutter 2.8 mm (4 mm/6 mm), 2.8 mm @F2.0, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 74° 6 mm @F2.0, horizontal field of view 49°
• Lens Mount M12 Day & Night IR cut filter with auto switch 2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70° DNR (Digital Noise Reduction)
• 3D DNR WDR (Wide Dynamic Range)
• Digital WDR

Compression Standard

• Video Compression Main stream: H.264 Sub stream: H.264/MJPEG
• H.264 Type Baseline profile/Main profile
• Video Bit Rate 32 Kbps to 2 Mbps


• Max. Resolution 1280 × 720
• Main Stream Max. Frame Rate 50Hz: 25fps @(1280 × 720) 60Hz: 30fps @(1280 × 720)
• Sub-stream Max. Frame Rate 50Hz: 25fps @(640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(640 × 480, 352 × 240, 320 × 240)
• Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software Day/Night Switch Support auto, scheduled Others Mirror, BLC (area configurable),
• region of interest (support 1 fixed region)

Detections Motion

• detection Alarms Video tampering, network disconnected, IP address conflicted
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour Standard ONVIF (PROFILE S, PROFILE G), ISAPI
• General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Interface

• Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
• Reset Support

General

• Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply 12 V DC ± 25%, PoE (802.3af)
• Power Consumption Max. 4 W Protection Level IP67, IK10 IR
• Range Up to 30 m Dimensions Φ 111 mm × 82 mm (4.4" × 3.2") Weight 500 g (1.1 lb
