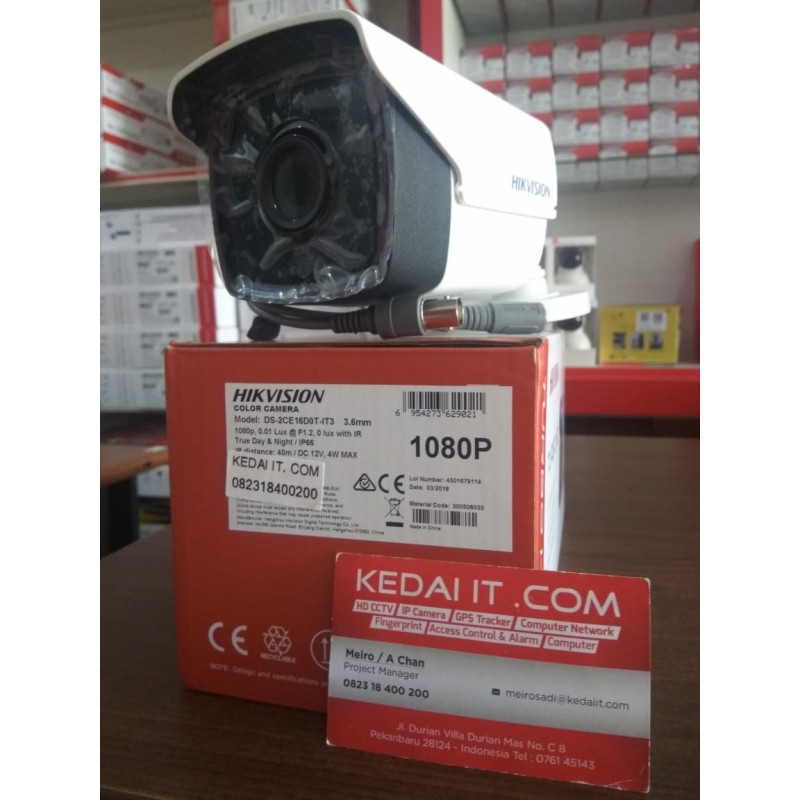

HIKVISION CAMERA DS-2CE16DOT-IT3
New product
-
• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• Smart IR
• EXIR technology, up to 20m/40m/80m IR distance
• IP66 weatherproof
More info
|
General | ||
|---|---|---|
|
Operating Conditions: |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
|
Power Supply: |
12 VDC±15% |
|
|
Power Consumption: |
Max. 6W |
|
|
Weather Proof: |
IP66 |
|
|
IR Range: |
Up to 80m |
|
|
Dimension: |
86.22×82.05×220.13mm(3.39”×3.23”×8.67”) |
|
|
Weight: |
430 g (0.95 lb) |
|
|
Image Sensor: |
2MP CMOS Image Sensor |
|
|
Signal System: |
PAL/NTSC |
|
|
Effective Pixels: |
1920(H)*1080(V) |
|
|
Min. Illumination: |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
|
Shutter Time: |
1/25(1/30) s to 1/50,000 s |
|
|
Lens: |
Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
|
|
Lens Mount: |
M12 |
|
|
Adjustment Range: |
Pan: 0°-360°; Tilt:0°-180°; Rotation: 0°-360° |
|
|
Day& Night: |
IR cut filter with auto switch |
|
|
Video Frame Rate: |
1080p@25fps/1080p@30fps |
|
|
HD Video Output: |
1 Analog HD output |
|
|
Synchronization: |
Internal Synchronization |
|
|
S/N Ratio: |
More than 62 dB |
