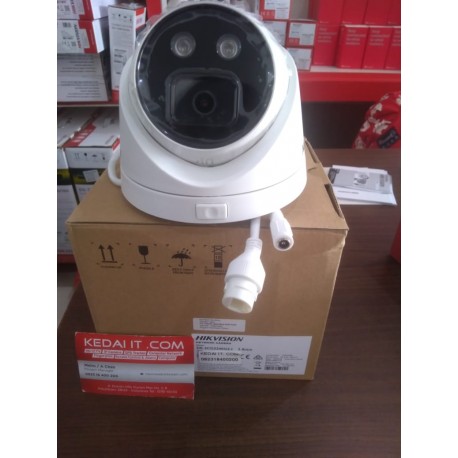

HIKVISION CAMERA DS-2CD2346G2-I
New product
- 4 MP IR Fixed Turret Network Camera
-
• Max. 2688 × 1520 @ 25fps
• 2.8 mm/4 mm/6 mm fixed lens
• H.265, H.264
• 120dB WDR
• False alarm filter by target classification
• Powered by Darkfighter
• 12 VDC & PoE (802.3af, class 3)
• IR range: Up to 50 m
• Support on-board storage, up to 128 GB
• IP67
• BLC/3D DNR/ROI
• Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
More info
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 70°, rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Fixed |
| Operating Conditions: | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) | |
| Power Consumption: | 12 VDC, 0.7 A, max: 8.5 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max: 10 W |
|
| Weather Proof: | IP67 | |
| IR Range: | Up to 50m | |
| Dimensions: | Camera: Φ130 × 105 mm (Φ5.1″ × 4.1″) | |
| Weight: | Camera: 500 g (1.1 lb.) With package: 780 g (1.7 lb.) |
