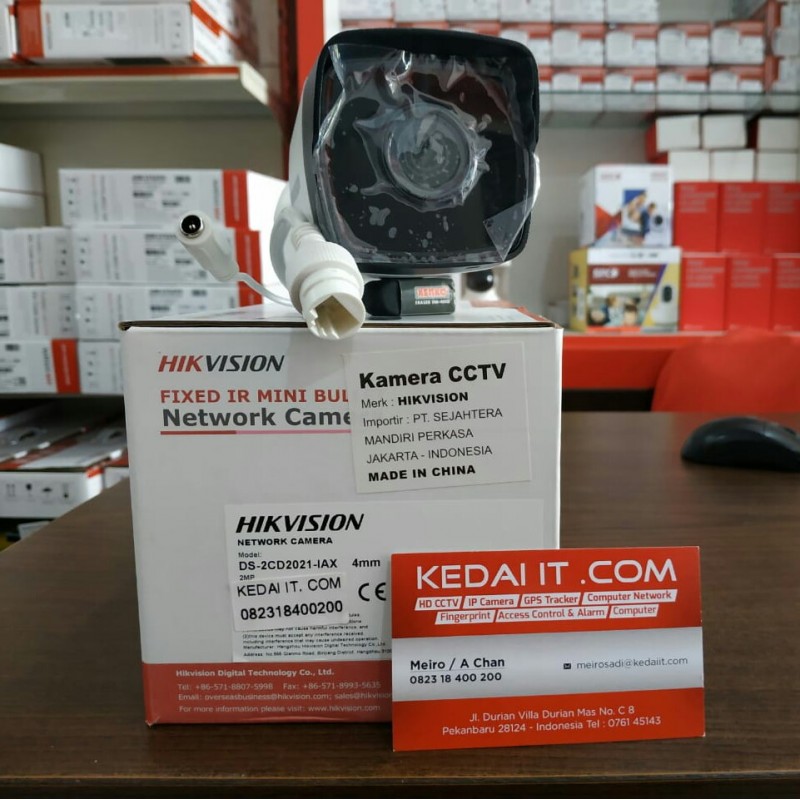

> >>HIKVISION CAMERA DS-2CD2021-IAX
HIKVISION CAMERA DS-2CD2021-IAX View larger

HIKVISION CAMERA DS-2CD2021-IAX

New product

  • 1/2.8″ Progressive Scan CMOS 1920 × 1080@30fps 4 mm fixed lens Color: 0.01 Lux @ (F1.2, AGC ON)
  • 0.028 Lux @ (F2.0, AGC ON)
  • 0 Lux with IR H.265+
  • H.265, H.264+
  • H.264 2 Behavior analyses IP67
  • support POE / 12V power 3-Axis adjustment

More details

More info

Camera

  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Auto-Iris No Day & Night IR Cut Filter
  • Digital Noise Reduction 3D DNR WDR DWDR
  • 3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • Focal length 2.8/4/6 mm
  • Aperture F2.0 Focus Manual FOV 2.8 mm:horizontal FOV: 103°, vertical FOV: 59°, diagonal FOV: 118° 4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
  • Lens Mount M12

Compression Standard

  • Video Compression Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG H.264
  • Type Main Profile/High Profile
  • H.264+ Main stream and sub-stream support
  • H.265 Type Main Profile
  • H.265+ Main stream and sub-stream support
  • Video Bit Rate 32 Kbps to 16 Mbps

Smart Feature-set

  • Behavior Analysis Line crossing detection, intrusion detection
  • Region of Interest 1 fixed region for main stream and sub-stream


  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Image Enhancement BLC/3D DNR Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser Target Cropping No Day/Night Switch Auto/Schedule

General

  • Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W Protection Level IP67 TVS 2000V
  • lightning protection, surge protection and voltage transient
  • protection Material Metal & Plastic
  • Dimensions Camera: Ø 70 mm × 172.7mm ( 2.7" × 6.8") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Weight Camera: Approx. 280 g (0.62 lb.)
  • With package: Approx. 530 g (1.17 lb.)
