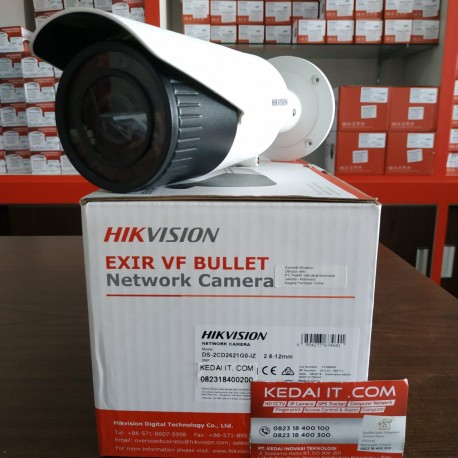

HIKVISION CAMERA DS-2CD2621G0-IZ

Camera

• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Auto-IrisYes
• Day & NightIR Cut Filter
• Digital Noise Reduction3D DNR
• WDR120 dB
• 3-Axis AdjustmentPan: 0°to 360°, tilt: 0°to 100°, rotation: 0°to 360°

Lens

• Focal Length2.7-12mm
• ApertureF2.0
• FocusAuto
• FOVHorizontal FOV: 99.6°to 35°, vertical FOV: 53.5°to 20°, diagonal FOV: 118.6°to 40.2°
• Lens MountΦ14

IR

• IR RangeUp to 50
• Wavelength850nm

Compression Standard

• Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.264+Main stream supports
• H.265 TypeMain Profile
• H.265+Main stream supports
• Video Bit Rate32 Kbps to 8 Mbps
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set

• Behavior AnalysisLine crossing detection, intrusion detection
• Region of Interest1 fixed region for main stream


• Max. Resolution1920 × 1080
• Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Steam50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Image EnhancementBLC/3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
• Target CroppingNo
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in

Network

• Network StorageSupport built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware VersionV5.5.6
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users 3 levels: Administrator, Operator and User
• ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Audio1 input (line in), 1 output (line out), mono soun
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Alarm2 inputs, 2 outputs
• Video OutputCVBS
• On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
• SVCH.264 and H.265 encoding support
• Reset ButtonYes

Audio

• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General

• Operating Conditions-30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power PoE (802.3af, class 3)
• Power Consumption and Current12 VDC, 0.9 A, max. 11 W PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12.9 W
• Protection LevelIP67
• MaterialMetal
• DimensionsΦ 105 × 294.5 mm (Φ 4.1" × 11.6")
• WeightCamera: approx. 1050 g (2.3 lb.) With package: approx. 1500 g (3.3 lb.)
