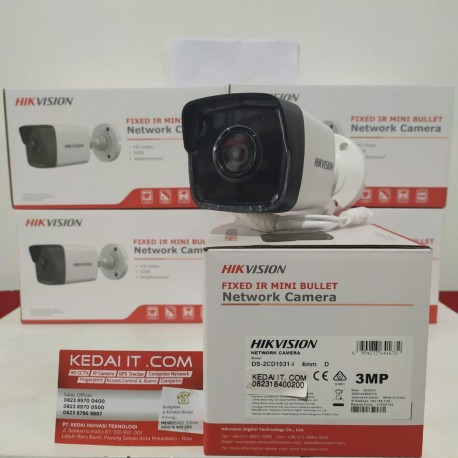

HIKVISION CAMERA DS-2CD1031-I View larger

HIKVISION CAMERA DS-2CD1031-I

New product

Key Features1/3" progressive scan CMOSUp to 3.0 megapixel2.8mm/4mm/6mm fixed focal lensUp to 30 m IR rangeDual streamDigital WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction)PoE (Power over Ethernet)IP67 Mobile monitoring via Hik-Connect or iVMS-4500

More details

More info

CameraImage Sensor1/3" progressive scan CMOSMin. IlluminationColor: 0.01Lux @(F1.2,AGC ON),0 Lux with IRShutter Speed1/3s to 1/100,000 s, support slow shutterLens2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6° 6 mm @F2.0, horizontal field of view 55° Lens MountM12Day &NightIR cut filter with auto switch3-Axis Adjustment (Bracket)Pan: 0° to 360°, tilt: -90°to 90°, rotation:0° to 360°DNR(Digital Noise Reduction)3D DNRWDR (Wide Dynamic Range) Digital WDRCompression StandardVideo Compression Main stream: H.264+/H.264Sub stream: H.264/MJPEGH.264 TypeMain profile/High profileVideo Bit Rate32 Kbps to16 MbpsImageMax. Resolution2304 × 1296Main StreamMax. Frame Rate50Hz: 20fps@(2304 × 1296), 25fps@(1920 × 1080, 1280 × 720) 60Hz: 20fps@(2304 × 1296), 30fps@(1920 ×1080, 1280 × 720)Sub-streamMax. Frame Rate50Hz: 25fps @(640 × 360, 352 × 288)60Hz: 30fps @(640 × 360, 352 × 240) Image SettingsBrightness, saturation, contrast, sharpness are adjustable via web browser or client softwareDay/Night Switch Support auto, scheduledOthersMirror, BLC (area configurable), region of interest (support 1 fixed region)NetworkNetwork StorageNAS (NFS,SMB/CIFS)DetectionsMotion DetectionAlarms Video tampering, network disconnected, IP address conflictedProtocolsT C P/ I P, I C M P, H T T P, H T T P S , F T P, D H C P, D N S , D D N S , R T P, R T S P, R T C P, NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourStandardONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPIGeneral FunctionAnti-flicker, heartbeat, mi r ro r, password protection, privacy mask, watermark, IP address filterInterfaceCommunication Interface1 RJ45 10M/100M self-adaptive Ethernet port GeneralOperating Conditions-30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing)Power Supply12VDC ± 25%, PoE (802.3af)Power ConsumptionMax. 5 W/6.5 W (PoE)Ingress ProtectionIP67IR RangeUp to 30 mDimensions69.1 mm ×66 mm × 172.7 mm ( 2.7"× 2.6"× 6.8") Weight500 g (1.1 lb.)
