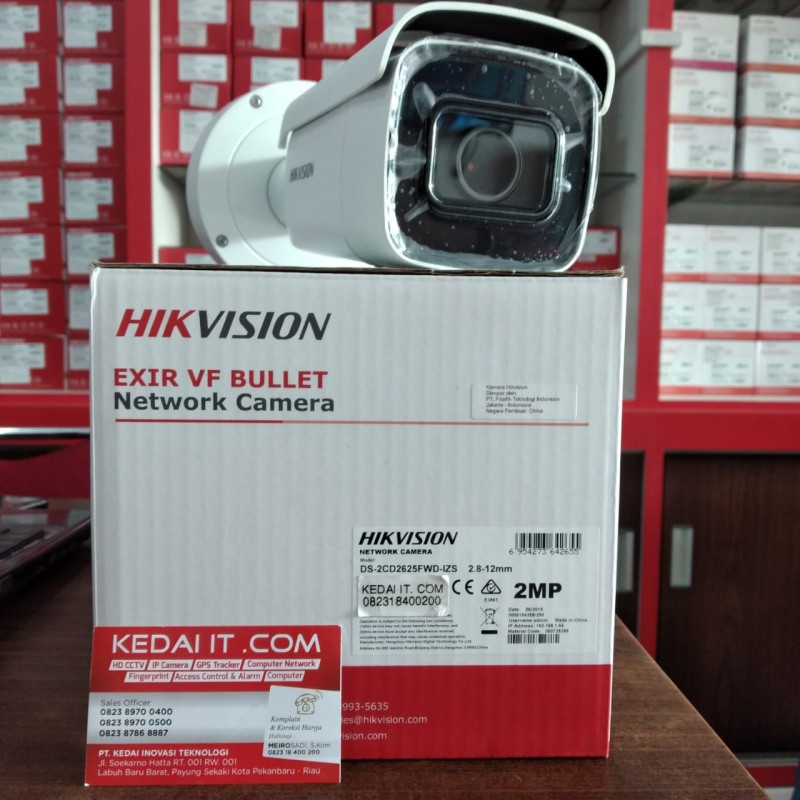

HIKVISION NETWORK CAMERA DS-2CD2625FWD-IZS
New product
1/2.8" Progressive Scan CMOS
1920 × 1080 resolution
H.265, H.265+
120dB WDR
IP67, IK10
BLC/3D DNR/ROI
Smart encoding: Support low bit rate, low latency
4 behavior analyses and face detection
More info
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Day &NightIR Cut Filter
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- DNR3D DNR
- Lens
- Lens2.8 to 12 mm;Motorized
- ApertureF1.4
- FocusAuto
- FOVHorizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
- Lens MountΦ14
- Illuminator
- IR RangeUp to 50 m
- Wavelength850nm
- Video
- Max. Resolution1920 × 1080
- Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
- Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 16 Mbps
- SVCH.264 and H.265 encoding
- Audio
- Audio CompressionG722.1/G.711/G726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Environment Noise FilteringYes
- Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
- Smart Feature-Set
- Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Region Of InterestSupport 1 fixed region for main stream and sub stream
- Image
- Image EnhancementBLC/3D DNR/HLC
- Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
- Network
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Audio1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
- Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output1Vp-p composite output (75 Ω) (For adjustment only)
- On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Approval
- Impact ProtectionIK10
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- Smart Feature-Set
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Firmware VersionV5.5.80
- General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
- ResetYes
- Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, PoE (802.3at),Terminal block for DC input
- Power Consumption And Current12 VDC, 1.2A, max. 14.5W; PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 16.5W
- MaterialMetal
- DimensionsΦ144.13×332.73 mm (Φ5.67"× 13.10")
- WeightCamera: Approx. 1890 g (4.17 lb.)
- Interface ProtectionIP67
