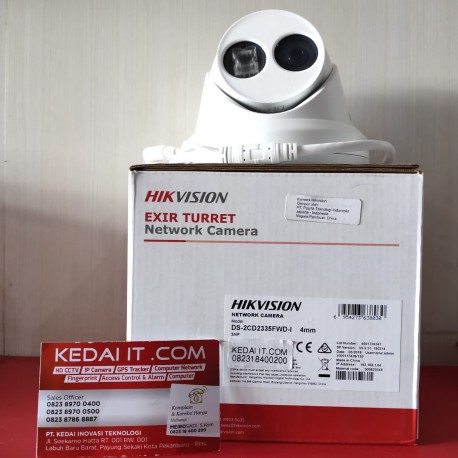

HIKVISION NETWORK CAMERA DS-2CD2335FWD-I 4mm View larger

HIKVISION NETWORK CAMERA DS-2CD2335FWD-I 4mm

New product

Key Features

- Up to 3 Mp high resolution

- Max. 2048 × 1536 @30fps

- 2.8 mm/4mm/6mm/8mm/12mm fixed lens, optional

- Powered by Darkfighter

- H.265,H.265+,H.264+,H.264

- 120dB WDR

- 3D DNR

- 12VDC & PoE(802.3af)

- IR range:up to 30 m

- Support on-board storage,up to 128GB

- 3-Axis Adjustment

- IP67

- Color: 0.005 lux @(F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 lux with IR



More details

More info

Camera

Image Sensor : 1/2.8" Progressive Scan CMOS

Min. Illumination Color : 0.005 lux @(F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 lux with IR

Shutter Speed : 1/3 s to 1/100,000 s

Slow Shutter : Yes

Focal length : 2.8/4/6/8/12 mm

Focus : Fixed

FOV : 2.8 mm, horizontal field of view: 98°

4 mm, horizontal field of view: 78.7°

6 mm, horizontal field of view: 48°

8 mm, horizontal field of view: 37°

12 mm, horizontal field of view: 23°

Lens Mount : M12

Iris : F1.6

Day &Night : IR cut filter

DNR : 3D DNR

Wide Dynamic Range : 120dB

3-Axis Adjustment Pan : 0°to 360°,tilt: 0°to 75°,rotate :0°to 360°

Compression Standard

Video Compression : Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 : Type Main Profile/High Profile

H.264+ : Main stream supports

H.265 Type : Main Profile

H.265+ : Main stream supports

Video Bit Rate : 32 Kbps to 16 Mbps


Max. Resolution : 2048 × 1536

Main Stream : 50Hz: 25fps (2048 ×1536,1920×1080,1280 × 720)

60Hz: 30fps (2048 ×1536,1920×1080,1280 ×720)

Sub-Stream : 50Hz : 25fps (640×480,640 ×360,320 × 240) 60Hz:30fps (640× 480, 640 × 360,320 ×240)

Third Stream : 50Hz: 25fps (1280 ×720,640 × 360,352×288) 60Hz: 30fps (1280 ×720, 640×360,352 ×240)

Image Enhancement : BLC/3D DNR/HLC

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness and white balance adjustable by client software or web browser.

ROI (Region of Interest) : Support 1 fixed region for main stream and sub-stream          separately

Day/Night Switch : Day/Night/Auto/Schedule.

Network

Network Storage : Support microSD/SDHC/SDXC card (128G) local storage, NAS                                            (NFS,SMB/CIFS), ANR.

Alarm Trigger : Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error.

Protocols : TCP/IP, UDP, ICMP, HTTP,HTTPS,FTP, DHCP,DNS,DDNS,RTP, RTSP, RTCP,                     PPPoE, NTP,UPnP, SMTP,SNMP,IGMP, 802.1X,QoS, IPv6

Standard : ONVIF (PROFILE S, PROFILE G), ISAPI

General Function: One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Firmware Version : V5.5.80

API ONVIF (PROFILE S, PROFILE G),ISAPI

Simultaneous Live View : Up to 6 channels

User/Host: Up to 32 users 3 levels: Administrator, Operator and User

Client: iVMS-4200, Hik-Connect, iVMS-5200,iVMS-4500

Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44,Firefox 30.0-51,Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+


Interface

Communication Interface :1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage : Built-in microSD/SDHC/SDXC slot, up to 128 GB

Reset Button : Yes


General

Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-                                          condensing)

Power Supply  : 12 VDC ± 25%, 6 W

                           PoE (802.3af, 36 V to 57 V, class 3), 7 W

IR Range         : Up to 30 m

Protection Level :  IP67

Material : Metal

Dimensions: Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″)

Package : 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)

Weight : Camera: 620 g (1.37 lb.)
