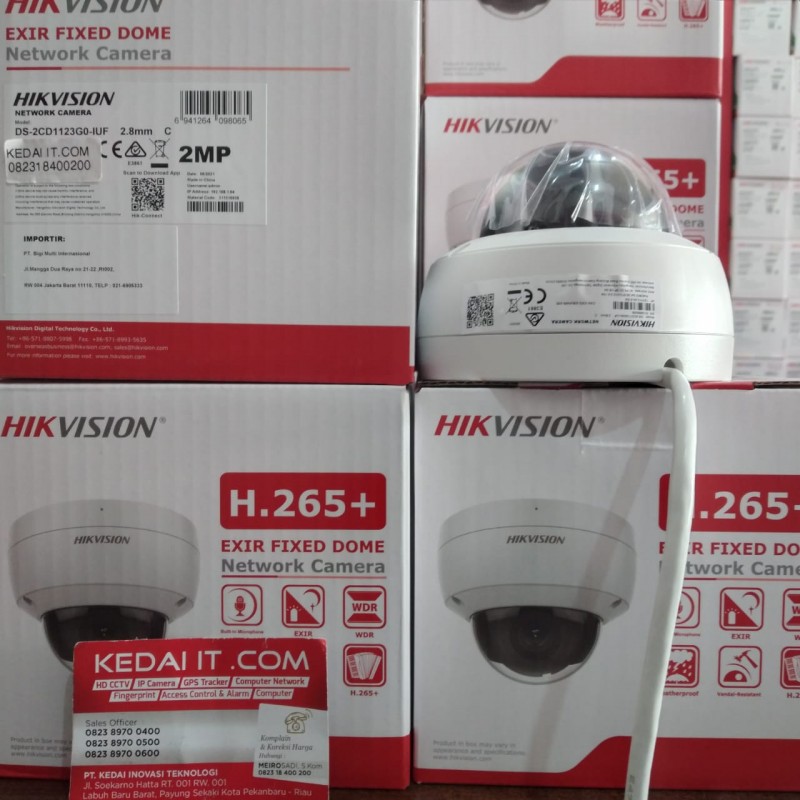

HIKVISION DS-2CD1123G0-IUF 2 MP FIXED DOME NETWORK CAMERA 2.8mm
New product
2 MP Fixed Dome Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Water and dust resistant (IP67), vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
More info
- Camera
- Image Sensor1/2.8" progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDigital WDR
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°
- DNR3D DNR
- Lens
- Lens2.8 mm, 4 mm, 6 mm
- Auto-IrisNo
- ApertureF2.0
- FocusNo
- FOV2.8 horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 × 1080
- Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream and sub-stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, scheduled
- Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator, and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200
- Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- General
- Firmware Version5.5.2
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- MaterialMetal & Plastic
- DimensionsCamera: Ø 111 mm × 82.4 mm ( 4.4" × 3.2"),With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Camera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.)
- Power Consumption And Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
- Interface ProtectionIP67, IK10,TVS 2000V lightning protection, surge protection and voltage transient protection
