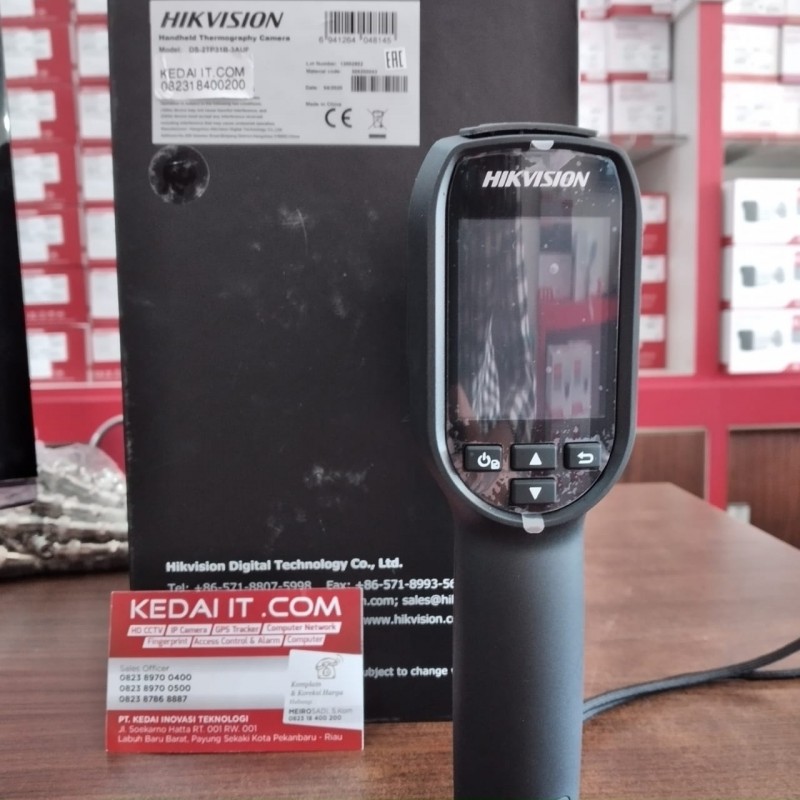

HIKVISION HANDHELD THERMOGRAPHY CAMERA DS-2TP31B-3AUF
New product
Key Features :
- 160 × 120 resolution
- Thermographic accuracy up to ±0.5 °C
- 320 × 240 resolution 2.4’’ LCD display
- Built-in rechargeable Li-ion battery
- Up to 8 hours continuous running
- Thermography : Device detects the real-time temperature, and display it on the screen.
More info
Model
DS-2TP31B-3AUF
Parameter
Handheld Thermography Camera
Image sensor Uncooled Focal Plane Arrays
Max. Resolution 160 × 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
Thermal
NETD < 40mK (@ 25 °C,F#=1.0)
Module
Field of View 37.2° × 50 °
Focal length 3.1 mm
IFOV (mrad) 5.48 mrad
Min.Focus Length ≥ 150 mm
Aperture F 1.1
Image Display
Monitor 320 × 240 resolution 2.4’’ LCD display
Palettes Black hot, White hot, Rainbow, Ironbow
Thermography
Rules
3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature Thermographic Range 30°C to 45 °C
Thermographic Accuracy ±0.5 °C
Battery
Battery Type Rechargeable Lithium Battery Battery
Operating Time 8 hours continuous running
Storage Replaceable memory card (default 8G, support up to 128G storage)
Photo Thermal image
Video N.A.
Language English
