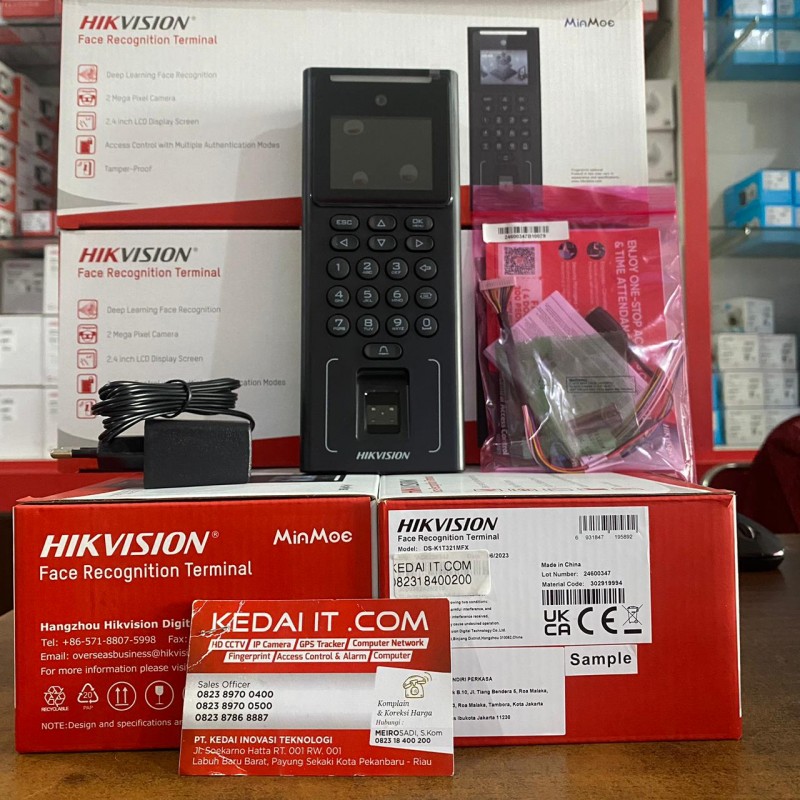

HIKVISION DS-K1T321MFX Value Series Face Access Terminal
New product
Value Series Face Access Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
- Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
- Face recognition duration < 0.2 s/User
- Configuration via the PC web client and mobile web client
- Supports wiring with secure door control unit or card reader via RS-485
More info
System
- Operating SystemLinux
Display
- Screen Size2.4 inch
- TypeDisplay screen
- Resolution320 × 240
Video
- Lens1
- Resolution2 MP (video stream: 720P)
- FOVHFOV = 25°; VFOV = 43°
- Video StandardPAL (Default) and NTSC
Audio
- Audio OutputBuilt-in buzzer
Network
- Wired Network10 M/100 M self-adaptive
Interface
- Network Interface1
- Lock Control1
- Exit Button1
- Door Contact Input1
- TAMPER1
- RS-485Support
- USB1
Capacity
- Face Capacity500
- Fingerprint Capacity3000
- Card Capacity3000
- Event Capacity150,000
Authentication
- Face Recognition Distance0.3 m ~ 1.5 m
- Face Recognition Accuracy Rate> 99%
- Face Recognition Duration< 0.2 s
- Card TypeM1 card
- Card Reading Distance0 to 5 cm
General
- Supplement LightWhite light
- Power Supply12 VDC
- Power Consumption≤ 6 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity0％ to 90％ (No condensing)
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
- KeypadSupport
Function
- Face Anti-SpoofingSupport
- Face RecognitionSupport
