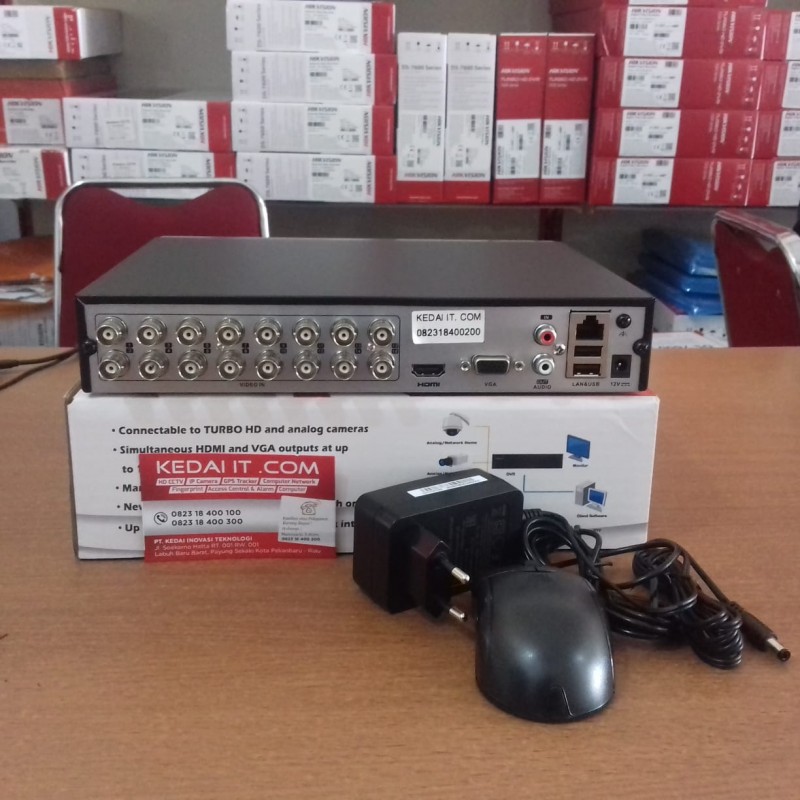

TURBO HD DVR DS-7216HDT-I

Condition: New product

Video Input and Transmission

l Connectable to Turbo HD/HDCVI/AHD/CVBS signal input

l Up to 2-ch 1080p IP cameras input

l Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

l Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution:		When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces
